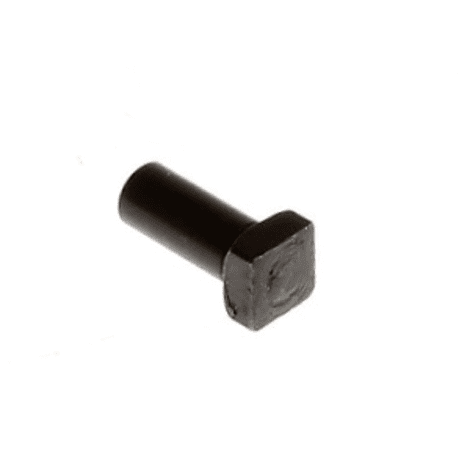

445/03023 JCB Locating Pin

• Used On: Compatible with multiple JCB transmissions, ensuring precise alignment and secure fitting of transmission components.
• Function: Serves as a locating pin to accurately position and secure parts within the transmission assembly.
• Total Length (L1): 17.7 mm, providing the right length for effective engagement without excess protrusion.
• Biggest Finished Diameter (D1): 6.2 mm, ensuring a snug fit for reliable operation.
• Width Across Flats (WAF): 8.2 mm, designed for easy installation and removal using standard tools.
• Material: Constructed from durable, high-quality materials to withstand operational stresses and environmental conditions.
• Application: Critical for maintaining proper alignment of transmission parts, preventing wear and ensuring smooth gear operation.
• Benefits: Enhances the longevity of transmission components, reduces downtime, and maintains optimal performance.
• Design: Precisely manufactured for a perfect fit, supporting reliable and efficient transmission assembly.

This locating pin is an essential component for maintaining the alignment and performance of your JCB transmission system.
